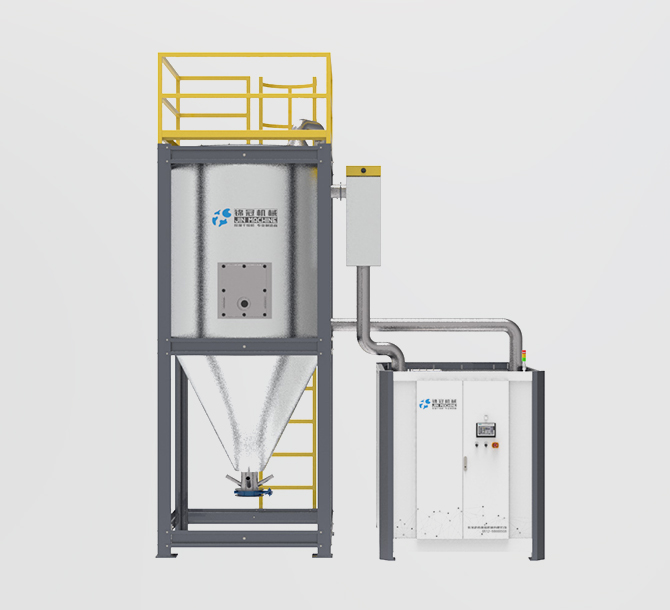

One Tow One Dehumidifier

CSG series one-to-one dehumidification dryer is composed of various models of HB series drying barrels and various models of DAG series drying hosts. This series of dehumidification dryer can automatically adjust the control parameters according to various temperature changes, such as material temperature, air temperature, etc., so as to achieve intelligent control, improve efficiency and save energy. Cover the production demand of 100kg-10 tons.


The dew point of CSG series dehumidifier can reach -70°C, shorten the drying time, improve the drying efficiency, and the residual moisture content can be less than 20ppm.


CSG series is the first dryer with SCADA technology in China, remote control, adjustment of technical parameters according to the actual situation, online detection, and prediction of faults in advance.


The dew point switching technology of the CSG series can set different dew points according to the drying requirements of different materials to minimize energy consumption.


CSG series molecular sieve dehumidifier saves 18%-60% in energy consumption compared with the same output of honeycomb dehumidifier. (This is based on thousands of experimental reports and feedback from customers, testing real data)


This series is suitable for the dehumidification and drying of various engineering plastic particles, (PA, PE, PLA, PET, PMMA, PBS, VPVC, PC, PBT, TPU, TPE, ABS, PBAT, PETG, etc.) applications and various plastic granulation production lines, extrusion, injection molding, blow molding production lines. Jinyue dehumidifier has a high market share in the breathable membrane, gas pipe, strapping belt, coating film, cable, medical and plastic degradation industry.


  • Drying barrel structure

    HAD series adopts double-layer thermal insulation barrel with built-in aluminum silicate cotton. The inner layer is made of stainless steel, and the outer layer can be made of stainless steel or orange aluminum plate according to customer needs. The internal structure, height and diameter ratio of the barrel have been tested for many times, reasonably designed to avoid the dead angle of material flow, and the rocket design inside the barrel ensures that all materials get a sufficient and reasonable drying time.

  • Large view cleaning window

    Convenient for subsequent cleaning, the cleaning door is equipped with a glass window, which can observe the inside of the barrel at any time, and the door fits closely with the barrel.

  • Sampling port

    The discharge port is equipped with a suction box and a globe valve for emptying the material according to the demand, and supports customization。

  • Outlet

    The discharge port is equipped with a suction box and a globe valve for emptying the material according to the demand, and supports customization.

  • All stainless steel pipe connection

    Jinyue Machinery combines airflow motion analysis and industrial design to connect negative pressure stainless steel pipelines to avoid pipeline damage, delamination, deflated damage caused by excessive negative pressure of the fan because the filter element is not cleaned in time, and further cause huge sequelae such as fan damage and fire.

  • Remote control system

    The first domestic dehumidification dryer with SCADA system, equipment, mobile phone, computer online, remote control, management traceability. With the support of all-round data, through 24-hour data collection, automatic and manual analysis of the system, the system status can be judged and expected, equipment problems can be found in advance, and small problems can be prevented from developing into big problems. For the equipment status, Jinyue Machinery after-sales engineers have a more intuitive understanding of the equipment status, and interact with the on-site mechanics in real time, as if they were in person. At the same time, enjoy free software upgrades for life, so that the equipment is constantly improved.

  • Oil removal device

    Some plastic particles, in the heating process will volatilize some oil stain, Jin Machine self-made oil removal device, can effectively solve the oil pollution, improve drying efficiency, extend the service life of molecular sieve.
